main st. 29r hardtail
built for 29 inch wheels, front suspension, and fun days on the trails.

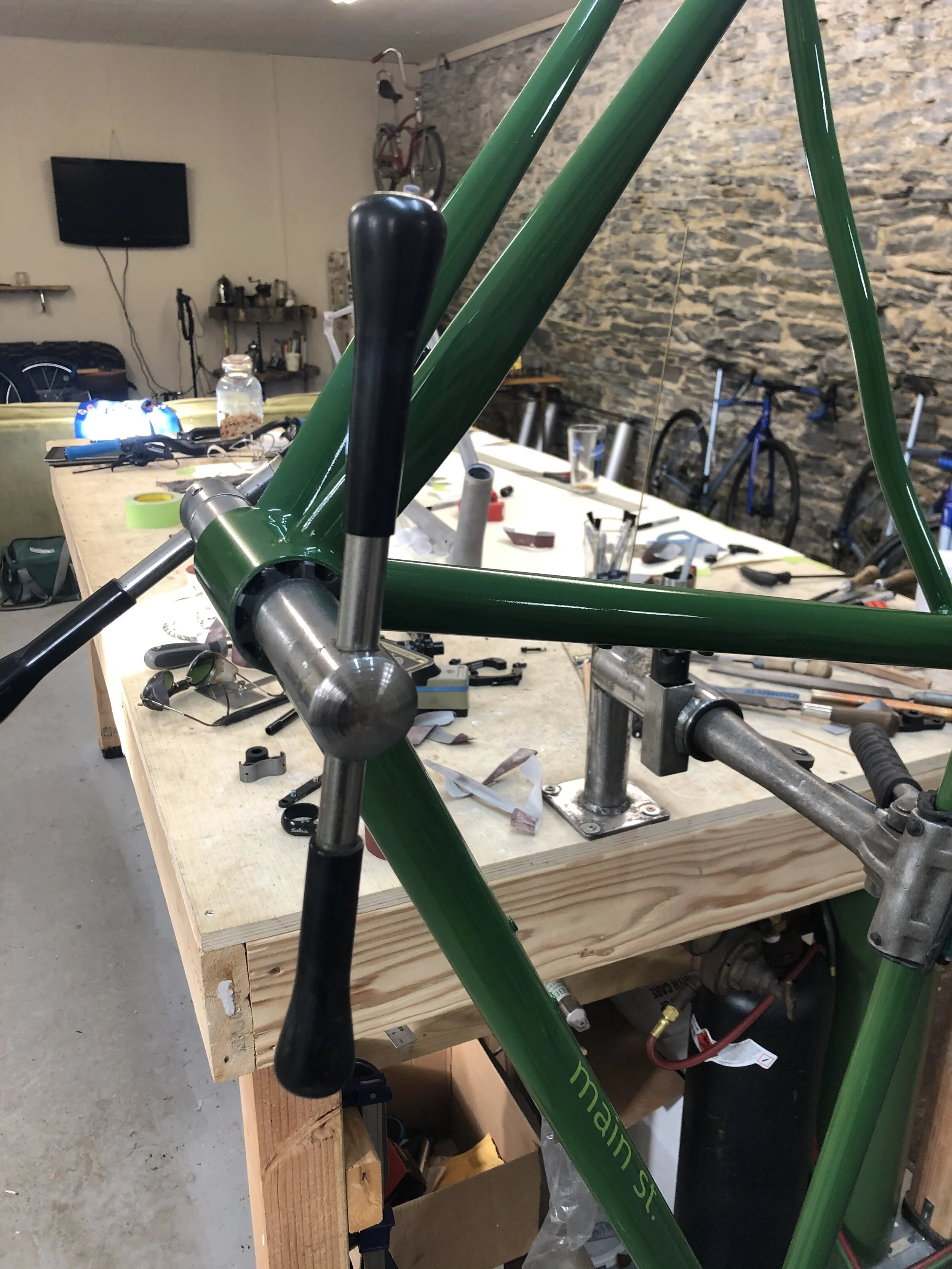

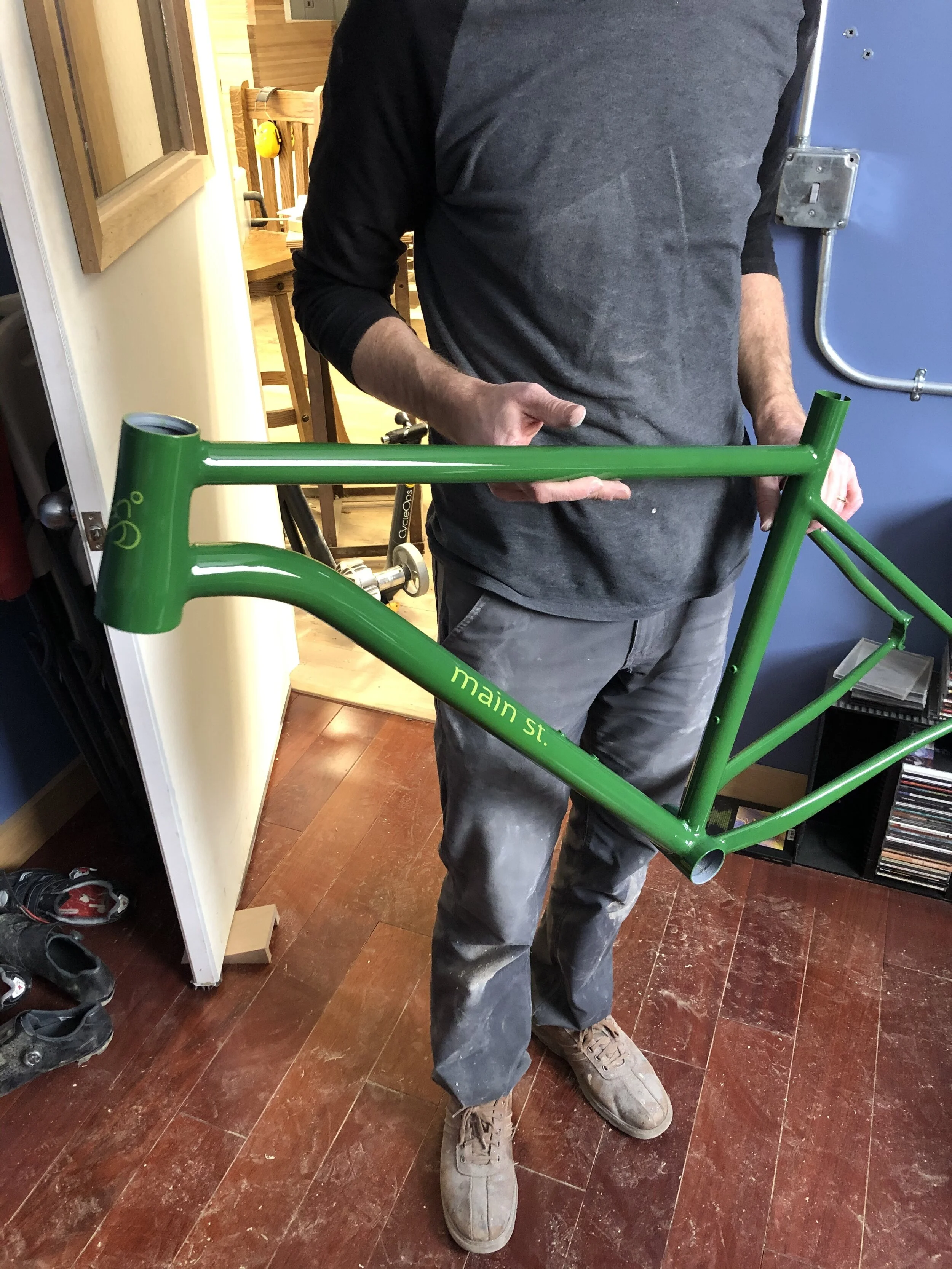

This fine hardtail’s customer had a well equipped full suspension bike that they just never liked, (sluggish, too little tire clearance, odd fit…). So we pulled the parts, used what made sense and designed a frame with 29x3” clearance, updated to 1x12 SRAM drive and a 150mil dropper. All fully internal routing and simple color choices lend to a clean and capable finished product.
Geo Chart - Click to enlarge
| ETT |
Effective Toptube | 657 mm |
| STL | Seat Tube Length | |
| HTA | Head Tube Angle | 68.5° |
| STA | Seat Tube Angle | 71.5° |
| BBD | Bottom Bracket Drop | 59 mm |
| CSL | Chain Stay Length | 432 mm |
| HTL | Head Tube Length | |
| FL | Fork Length | |
| FO | Fork Offset | |
| WB | Wheelbase | |
| S | Stack | 672 mm |
| R | Reach | 434 mm |
| Color | Forest Green/Light Green |
